Opschotdetectie

Deze notebook bevat een voorbeeld van opschotdetectie. Opschot zien we als ongewenste, houtachtige begroeiing op een steenbekleding van een waterkering. De methode om opschot te detecteren is in dit voorbeeld gebaseerd op zero-shot inference met de foundation models GroundingDino en SegmentAnything.

Code
import os
os.environ['KMP_DUPLICATE_LIB_OK'] = 'TRUE'

import torch
import torchvision
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.axes
from typing import List, Tuple, Iterable
from PIL import Image
import torchvision.transforms as T

import groundingdino.util.inference
import groundingdino.util.utils

from hydra import initialize, compose

with initialize("config", version_base=None):
    cfg = compose("config.yaml")

Voorbeeld foto met opschot

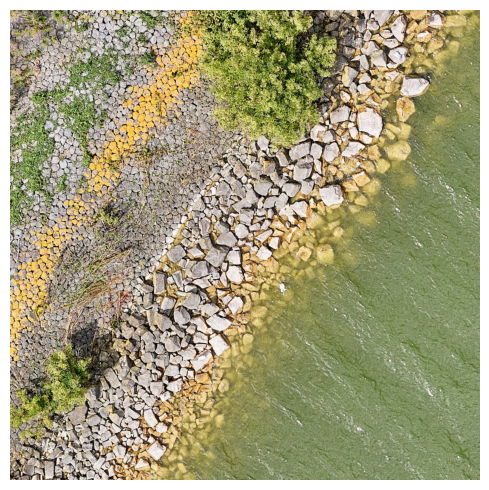

We passen de methode toe op een drone foto van een kering met steenbekleding. Op de steenbekleding is duidelijk opschot aanwezig:

Code
imgPath = 'images/test.jpeg'

# Load image
image_pil = Image.open(imgPath).convert("RGB")


# Define transformations
transform = T.Compose(
    [
        T.Resize(800),
        T.ToTensor(),
        T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
    ]
)

# Apply transformations
image = transform(image_pil)
image_np = np.array(image_pil)

fig, ax = plt.subplots(figsize=(5, 5), dpi=100)
ax.imshow(image_pil)
ax.axis("off")
fig.tight_layout();

Foundation models

Om opschot te detecteren, moeten we de locatie van opschot bepalen en vervolgens uitknippen. De locatie bepalen we met behulp van GroundingDino, waarna we de precieze locatie uitknippen met SegmentAnything. Om dit te doen moeten we eerst de twee modellen inladen.

Code
# Load Grounding Dino Model
dino_model = groundingdino.util.inference.load_model(
    cfg.GROUNDING_DINO_CONFIG_PATH,
    cfg.GROUNDING_DINO_CHECKPOINT_PATH,
    device=cfg.DEVICE,
)

# Load Segment Anything Model (SAM)
if cfg.USE_SAM_HQ:
    from segment_anything_hq import SamPredictor as SamPredictor_hq
    from segment_anything_hq import sam_model_registry as sam_model_registry_hq

    sam = sam_model_registry_hq[cfg.SAM_HQ_ENCODER_VERSION](
        checkpoint=cfg.SAM_HQ_CHECKPOINT_PATH
    ).to(device=cfg.DEVICE)
    sam_predictor = SamPredictor_hq(sam)
else:
    from segment_anything import SamPredictor, sam_model_registry

    sam = sam_model_registry[cfg.SAM_ENCODER_VERSION](
        checkpoint=cfg.SAM_CHECKPOINT_PATH
    ).to(device=cfg.DEVICE)
    sam_predictor = SamPredictor(sam)
final text_encoder_type: bert-base-uncased

Trefwoorden voor GroundingDino om opschot te detecteren

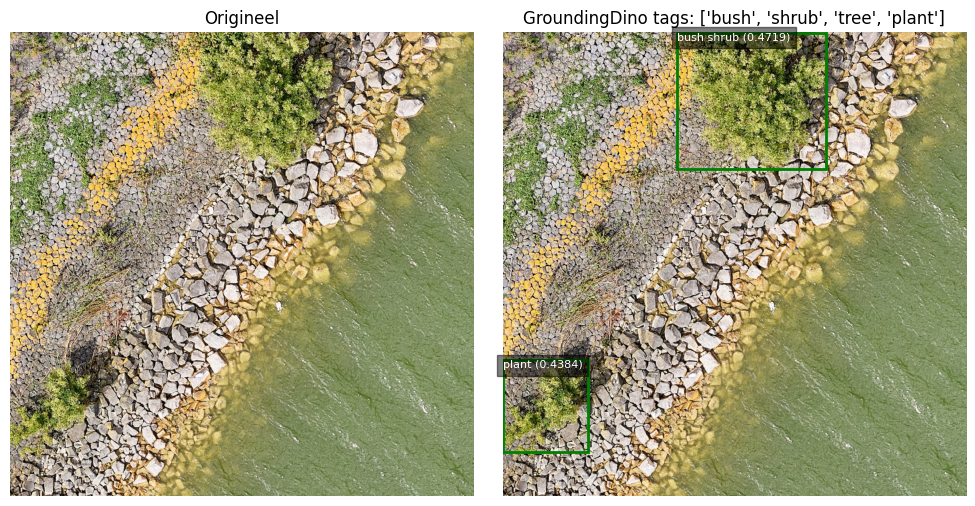

GroundingDino detecteert objecten op basis van een of meerdere trefwoorden (‘tags’). In dit voorbeeld geven we de trefwoorden ‘bush’, ‘shrub’, ‘tree’ en ‘plant’ mee aan GroundingDino om opschot te detecteren. GroundingDino produceert op basis van deze trefwoorden bounding boxes in de figuur waar deze trefwoorden worden aangetroffen. Op basis van Non-maximum-Supression worden overlappende bounding boxes tot 1 box samengevoegd.

Code
tag_list = ["bush", "shrub", "tree", "plant"]
tags = ". ".join(tag_list)

def get_grounding_output(
    model: torch.nn.Module,
    image: torch.Tensor,
    caption: str,
    box_threshold: float,
    text_threshold: float,
    device: str = "cpu",
) -> Tuple[torch.Tensor, torch.Tensor, List[str]]:
    """
    Process an image and caption through a model to generate grounded outputs,
    including filtered bounding boxes and corresponding text phrases.

    Parameters:
    - model (torch.nn.Module): The model to process the input data.
    - image (torch.Tensor): The image tensor.
    - caption (str): The caption string related to the image.
    - box_threshold (float): The threshold value to filter the bounding boxes based on confidence scores.
    - text_threshold (float): The threshold value to filter the text based on logits.
    - device (str, optional): The device type, 'cpu' or 'cuda', where the computation will take place. Defaults to 'cpu'.

    Returns:
    - tuple:
        - filtered_boxes (torch.Tensor): The filtered bounding boxes.
        - scores (torch.Tensor): The confidence scores of the phrases.
        - pred_phrases (list of str): The predicted phrases associated with the bounding boxes.
    """
    # Prepare caption
    caption = caption.lower().strip()
    if not caption.endswith("."):
        caption += "."

    # Move model and image to the specified device
    model = model.to(device)
    image = image.to(device)

    # Generate predictions
    try:
        with torch.no_grad():
            outputs = model(
                image.unsqueeze(0), captions=[caption]
            )  # Ensure image is 4D
        logits = outputs["pred_logits"].sigmoid()[0]  # (num_queries, num_classes)
        boxes = outputs["pred_boxes"][0]  # (num_queries, 4)

        # Filter outputs based on thresholds
        max_logits = logits.max(dim=1)[0]
        filt_mask = max_logits > box_threshold
        logits_filt = logits[filt_mask]
        boxes_filt = boxes[filt_mask]

        # Prepare phrases and scores
        tokenizer = model.tokenizer
        tokenized = tokenizer(caption)
        pred_phrases, scores = [], []
        for logit, box in zip(logits_filt, boxes_filt):
            pred_phrase = groundingdino.util.utils.get_phrases_from_posmap(
                logit > text_threshold, tokenized, tokenizer
            )
            pred_phrases.append(f"{pred_phrase} ({logit.max().item():.4f})")
            scores.append(logit.max().item())

        return boxes_filt, torch.tensor(scores), pred_phrases
    except Exception as e:
        raise Exception(f"An error occurred during model prediction: {e}")

# Find bounding boxes with grounding dino
boxes_filt, scores, pred_phrases = get_grounding_output(
    dino_model,
    image,
    tags,
    0.35,
    0.25,
    device=cfg.DEVICE,
)
boxes_filt =boxes_filt.cpu()

 # Resize boxes
size = image_pil.size
H, W = size[1], size[0]
for i in range(boxes_filt.size(0)):
    boxes_filt[i] = boxes_filt[i] * torch.Tensor([W, H, W, H])
    boxes_filt[i][:2] -= boxes_filt[i][2:] / 2
    boxes_filt[i][2:] += boxes_filt[i][:2]

# use NMS to handle overlapped boxes
nms_idx = (
    torchvision.ops.nms(boxes_filt, scores, 0.5).numpy().tolist()
)
if cfg.DO_IOU_MERGE:
    boxes_filt_clean = boxes_filt[nms_idx]
    pred_phrases_clean = [pred_phrases[idx] for idx in nms_idx]
    print(f"NMS: before {boxes_filt.shape[0]} boxes, after {boxes_filt_clean.shape[0]} boxes")
else:
    boxes_filt_clean = boxes_filt
    pred_phrases_clean = pred_phrases

def show_box(box: Iterable[float], ax: matplotlib.axes.Axes, label: str) -> None:
    x0, y0 = box[0], box[1]
    w, h = box[2] - x0, box[3] - y0
    rect = plt.Rectangle((x0, y0), w, h, edgecolor="green", facecolor="none", lw=2)
    ax.add_patch(rect)
    ax.text(
        x0,
        y0,
        label,
        verticalalignment="top",
        color="white",
        fontsize=8,
        bbox={"facecolor": "black", "alpha": 0.5},
    )
    return None

fig, axs = plt.subplots(1, 2, figsize=(10, 5), dpi=100, squeeze=False)

ax = axs[0, 0]
ax.imshow(image_np)
ax.set_title("Origineel", wrap=True)
ax.axis("off")

ax = axs[0, 1]
ax.imshow(image_np)
for box, label in zip(boxes_filt_clean, pred_phrases_clean):
    show_box(box.numpy(), ax, label)
ax.set_title(f"GroundingDino tags: {tag_list}", wrap=True)
ax.axis("off")
fig.tight_layout();
NMS: before 3 boxes, after 2 boxes

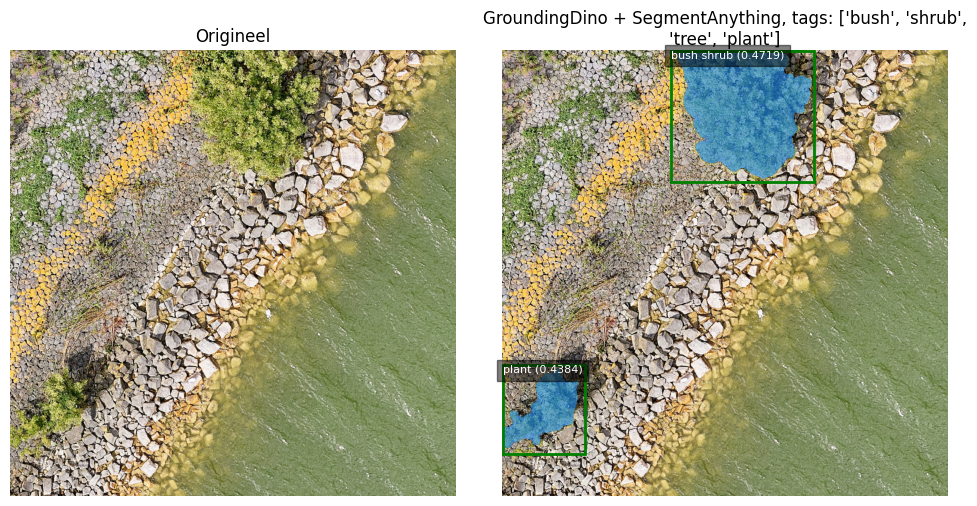

Uitknippen van opschot met SegmentAnything

Op basis van de zojuist gedetecteerde objecten, kunnen met SegmentAnything de contouren gedetecteerd worden.

Code
def show_mask(
    mask: np.ndarray, ax: matplotlib.axes.Axes, random_color: bool = False
) -> None:
    if random_color:
        color = np.random.rand(3)  # Generates three random floats between 0 and 1
        color = np.append(color, 0.6)  # Add alpha for transparency
    else:
        color = np.array(
            [30 / 255, 144 / 255, 255 / 255, 0.6]
        )  # Deep sky blue with transparency

    h, w = mask.shape
    mask_image = mask.reshape(h, w, 1) * color.reshape(1, 1, -1)
    ax.imshow(mask_image)
    return None

# Segment objects with SAM
sam_predictor.set_image(image_np)
transformed_boxes = sam_predictor.transform.apply_boxes_torch(
    boxes_filt_clean, image_np.shape[:2]
).to(cfg.DEVICE)
masks, _, _ = sam_predictor.predict_torch(
    point_coords=None,
    point_labels=None,
    boxes=transformed_boxes.to(cfg.DEVICE),
    multimask_output=False,
)

for cat_title, mask in zip(pred_phrases_clean, masks):
    mask = mask.cpu().numpy()

# Setup figure and axes
fig, axs = plt.subplots(1, 2, figsize=(10, 5), dpi=100, squeeze=False)

ax = axs[0, 0]
ax.imshow(image_np)
ax.set_title("Origineel", wrap=True)
ax.axis("off")

ax = axs[0, 1]
ax.imshow(image_np)
for mask in masks:
    show_mask(mask[0,...].cpu().numpy(), ax, random_color=False)
for box, label in zip(boxes_filt_clean, pred_phrases_clean):
    show_box(box.numpy(), ax, label)
ax.set_title(f"GroundingDino + SegmentAnything, tags: {tag_list}", wrap=True)
ax.axis("off")
fig.tight_layout();
